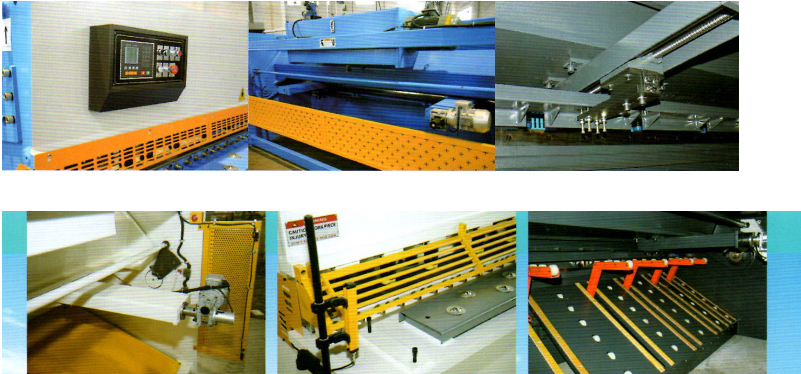

細節圖：

產品說明：

1.主機裝配剪板機專用數控系統;

2.后檔料采用滾珠絲桿、直線導軌,由伺服電機驅動,速度快、精度高;

3.數控系統有多步編程功能,后檔料自動運行連續定位,實現后擋料位置的自動調節;

4.具有剪切計數功能,顯示剪切數量,斷電后系統能記憶后檔料位置、程序及參數;

1. main machine assembly shearing machine special CNC system.

2. the rear gear is made of ball screw and linear guide, driven by servo motor, with high speed and high accuracy.

3. CNC system has multi-step programming function, after the file automatically run continuously positioning, to achieve automatic adjustment of the rear position.

4. it has the function of shearing and counting, displaying the number of shearing. After power failure, the system can remember the position, program and parameters of the rear gear.

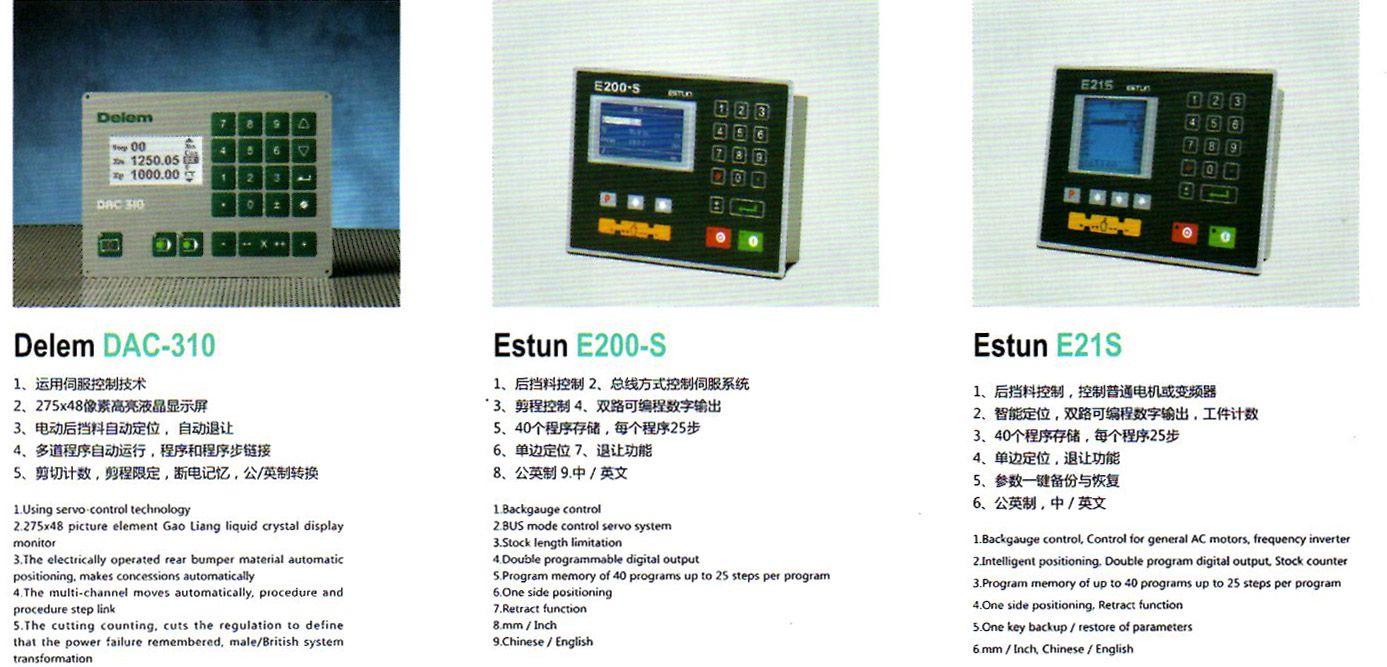

可選配的數控系統：
